Die casting is one of the most widely used manufacturing processes for producing high-volume metal components with complex geometries. From automotive parts and consumer electronics to industrial equipment and household appliances, die-cast components are found in countless products we use every day.

But how does die casting differ from CNC machining? When should manufacturers choose one process over the other? And why are the two often used together in modern production?

This article explores the fundamentals of die casting, its advantages and limitations, and how it compares with CNC machining in terms of cost, precision, scalability, and manufacturing applications.

What Is Die Casting?

Die casting is a metal casting process in which molten non-ferrous metals are injected into a precision-engineered steel mold (known as a die) under high pressure and at high speed.

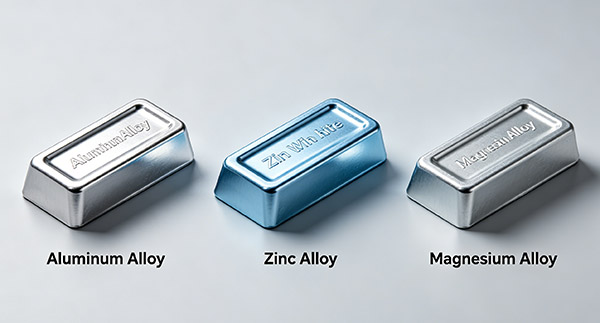

The process is commonly used with materials such as:

• Aluminum alloys

• Zinc alloys

• Magnesium alloys

Once injected, the molten metal rapidly solidifies inside the mold cavity, producing a near-net-shape component with excellent dimensional consistency.

Unlike traditional sand casting, die casting utilizes reusable metal molds and automated production equipment, enabling manufacturers to produce large quantities of identical parts efficiently and economically.

Because of its ability to create intricate shapes with high repeatability, die casting has become a preferred manufacturing method across automotive, electronics, telecommunications, aerospace, and consumer goods industries.

Advantages of Die Casting

Die casting offers several significant benefits that make it ideal for mass production.

1. High Production Efficiency

Once the mold has been developed, die casting enables rapid production cycles, making it highly suitable for large-volume manufacturing.

Thousands or even millions of identical components can be produced with minimal variation.

Key Benefit:

Lower per-unit cost as production volume increases.

2. Ability to Produce Complex Geometries

Die casting can create intricate three-dimensional shapes that would be difficult, expensive, or impossible to manufacture through conventional machining alone.

Features such as:

• Thin walls

• Ribs

• Bosses

• Integrated mounting structures

• Complex external profiles

can often be formed directly during casting.

Key Benefit:

Reduced assembly requirements and fewer manufacturing steps.

3. Excellent Dimensional Accuracy

Compared with many traditional casting methods, die casting offers superior dimensional consistency and tighter tolerances.

This reduces the need for extensive post-processing and helps manufacturers maintain consistent product quality.

Key Benefit:

Improved repeatability in large-scale production.

4. Reduced Secondary Operations

Many die-cast parts require only minimal finishing processes such as:

• Deburring

• Trimming

• Surface treatment

Compared with machining a component from solid material, significantly less material removal is required.

Key Benefit:

Shorter manufacturing lead times.

5. Potential Cost Savings

Although tooling investment can be substantial, the overall production cost per part decreases dramatically as volume increases.

For high-volume production programs, die casting often becomes one of the most cost-effective manufacturing solutions available.

Key Benefit:

Excellent return on investment for large production runs.

Disadvantages of Die Casting

Despite its many advantages, die casting is not suitable for every application.

1. Lower Mechanical Strength Compared with Machined Components

One of the primary limitations of die casting is the potential formation of internal porosity, commonly referred to as:

• Gas porosity

• Shrinkage porosity

• Casting voids

These microscopic defects may reduce structural integrity when compared with components machined from wrought materials.

Advanced processes such as vacuum die casting can significantly reduce porosity, but they generally increase manufacturing costs.

2. High Tooling Costs

Die casting requires precision molds manufactured from hardened steel.

Tooling development involves:

• Mold design

• Mold manufacturing

• Process validation

• Sampling and testing

As a result, the initial investment can be substantial.

Impact:

Not economically viable for low-volume production.

3. Geometric Limitations

Certain part designs remain difficult or impossible to produce through conventional die casting.

Examples include:

• Fully enclosed hollow structures

• Complex internal cavities

• Undercuts without specialized tooling

• Deep internal features

In such cases, alternative manufacturing methods or secondary machining operations may be required.

4. Tool Wear and Maintenance

Die casting molds are exposed to repeated thermal and mechanical stress.

Over time, factors such as:

• Thermal fatigue

• Erosion

• Cracking

can shorten mold life, particularly when casting abrasive alloys or highly complex parts.

Impact:

Additional maintenance and tooling replacement costs.

Die Casting vs. CNC Machining: Key Differences

Although both processes are widely used in metal component manufacturing, their operating principles are fundamentally different.

How Die Casting and CNC Machining Work Together

Rather than competing technologies, die casting and CNC machining are often complementary processes.

In many manufacturing projects, die casting creates the near-net-shape component while CNC machining performs precision finishing operations.

Common secondary machining processes include:

• Milling

• Drilling

• Tapping

• Boring

• Surface finishing

Critical dimensions, sealing surfaces, and precision holes are frequently machined after casting to achieve tighter tolerances.

This hybrid approach combines:

Advantages of Die Casting

• High productivity

• Low material waste

• Complex geometry capability

Advantages of CNC Machining

• Superior dimensional accuracy

• Enhanced surface finish

• Tight tolerance control

As a result, manufacturers can achieve both cost efficiency and precision.

Important Considerations When Machining Die-Cast Parts

When machining die-cast components, engineers must account for several unique characteristics.

Dimensional Variation

Even high-quality die-cast parts may exhibit slight dimensional deviations.

Fixtures and workholding systems should be designed to accommodate these variations while maintaining machining accuracy.

Porosity Management

Internal porosity can affect machining performance and final product quality.

Proper tool selection and machining strategies help minimize defects exposed during material removal.

Equipment Maintenance

Because die casting is typically associated with high-volume production, CNC equipment must maintain high uptime and reliability.

Regular inspection and preventive maintenance are essential to avoid production bottlenecks.

Common Applications of Die Casting

Die casting is used extensively across numerous industries.

Automotive Industry

The automotive sector represents one of the largest consumers of die-cast components.

Aluminum Die Casting Applications

Characteristics:

• Lightweight

• Excellent dimensional stability

• Good corrosion resistance

Typical Components:

• Engine brackets

• Transmission housings

• Valve bodies

• Hydraulic cylinders

Zinc Die Casting Applications

Characteristics:

• High impact strength

• Excellent ductility

• Superior surface finish

Typical Components:

• Door lock housings

• Retractor gears

• Seat belt pulleys

Magnesium Die Casting Applications

Characteristics:

• Extremely lightweight

• High strength-to-weight ratio

• Good heat resistance

Typical Components:

• Electronic housings

• Camera components

• Laptop and computer frames

Consumer Electronics

Die casting is widely used to manufacture:

• Laptop chassis

• Smartphone components

• Computer housings

• Networking equipment enclosures

Home Appliances

Many household products contain die-cast parts, including:

• Refrigerators

• Washing machines

• Vacuum cleaners

• Air conditioners

Office Equipment

Applications include:

• Printers

• Copiers

• Scanners

• Multifunction office devices

Conclusion

Die casting is a highly efficient manufacturing process capable of producing complex metal components with excellent consistency and cost-effectiveness at scale.

While it offers significant advantages in high-volume production, it also presents challenges such as tooling investment, porosity concerns, and certain design limitations.

CNC machining, on the other hand, excels in precision, flexibility, and low-volume manufacturing.

For many modern industrial applications, the optimal solution is not choosing one process over the other but strategically combining both. Die casting provides rapid near-net-shape production, while CNC machining delivers the precision required for critical functional features.

By understanding the strengths and limitations of each process, manufacturers can make informed decisions that improve product quality, reduce costs, and enhance overall production efficiency.

Frequently Asked Questions (FAQ)

Is die casting suitable for low-volume production?

Generally, no. Due to high tooling costs, die casting becomes economically viable primarily in medium-to-high-volume production runs.

Which materials are commonly used in die casting?

The most common materials include aluminum alloys, zinc alloys, and magnesium alloys.

Is CNC machining more accurate than die casting?

Yes. CNC machining typically achieves tighter tolerances and higher dimensional accuracy than die casting alone.

Can die-cast parts be machined afterward?

Absolutely. Secondary machining operations are commonly performed to achieve critical tolerances, threaded holes, and precision surfaces.

Which industries use die casting the most?

Automotive, consumer electronics, telecommunications, industrial equipment, household appliances, and aerospace industries are among the largest users of die-cast components.
